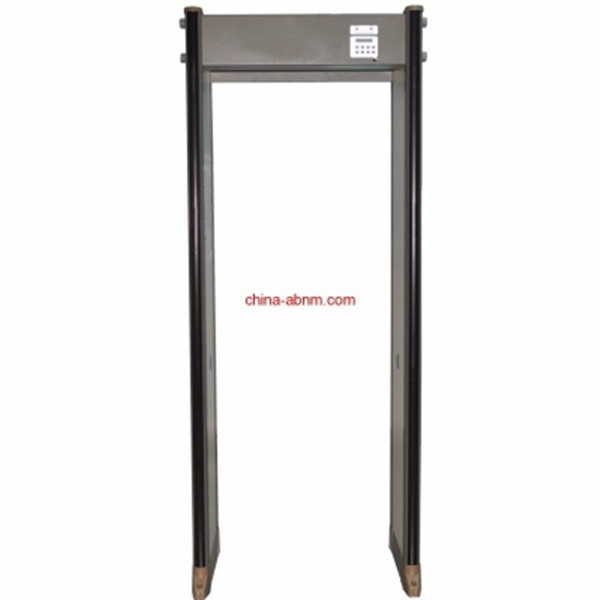

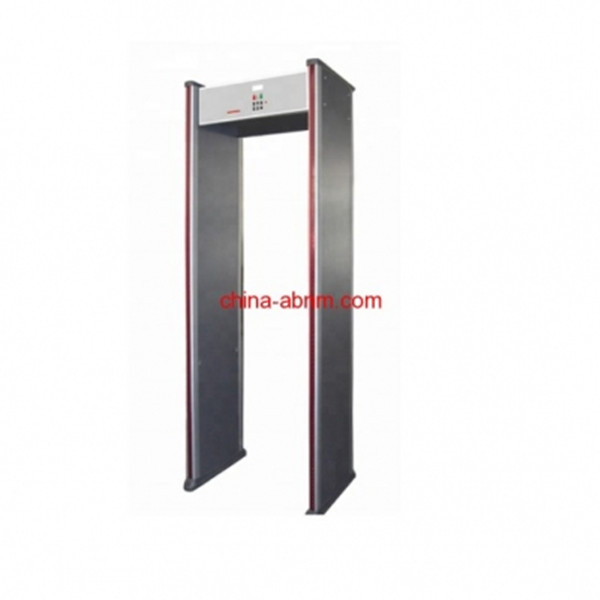

AB3300G2 walkthrough metal detector(33 detection zones, LCD display)
DIMENSIONS
Tunnel size: 2010*700*560mm Dimension: 2230*810*560mm
Package size:2280*665**220mm(door panels), 780*480*290mm(controller box)
Shipping Weight: 62 kg
OPERATING CONDITIONS
Temperature -4 (-20) to +158 (70)
Humidity Up to 95% non-condensing
BAR GRAPH
The LED bar graph is comprised of a series of lights. The bar graph light activity represents the level of metal detection intensity occurring within the archway. The detection intensity is dependent upon the quantity and composition of the metallic object(s), and the program and sensitivity settings of the unit. he bar graph also indicates the presence of electrical interference and interference from nearby moving metallic objects.
READY LIGHT
The green READY light appears when power is on and the detector is ready to detect metal. The ready light must be illuminated before a patron is permitted to enter the walk-through.
BACKLIT LCD
The LCD is a visual display located in the overhead panel. The LCD reports calibration and operational information, including program and sensitivity settings, operator functions and fault indication. The LCD displays all self-prompting regulation and control functions as well as traffic count information.
TRAFFIC FLOW
Pacing lights with international wait and proceed symbols are located on the entrance side of each panel and allow smooth and efficient traffic flow. The Traffic counter tracks the number of patrons that have passed through the detector, the number of alarms and calculates the
alarm percentage.
