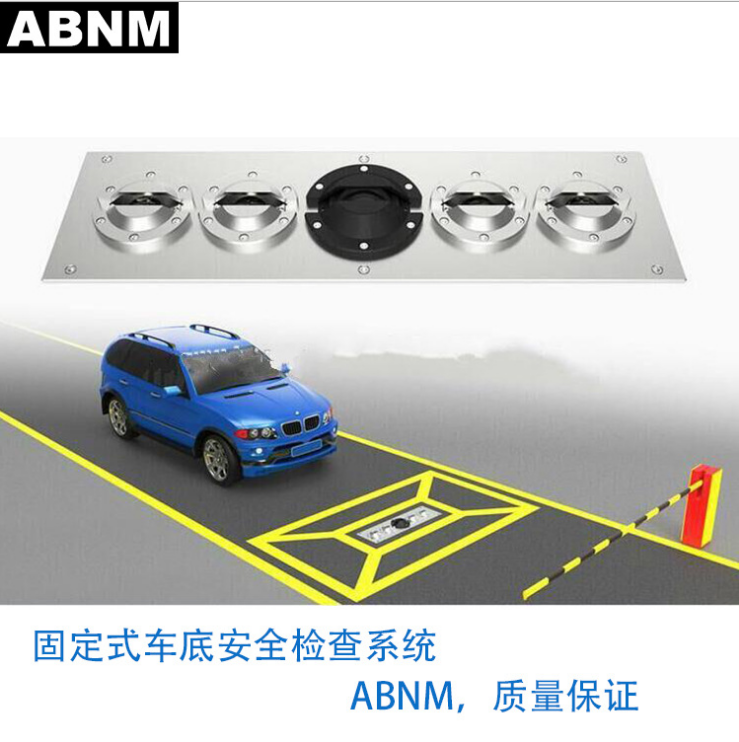

UVSS08 water-proof under vehicle inspection system

UVSS-08 portable under vehicle security inspecton system

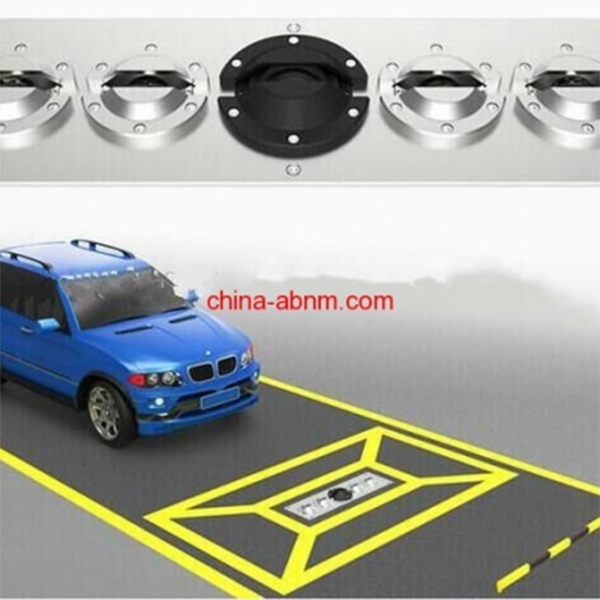

Vehicle safety inspection system is mainly to detect various bottom of the vehicle, can quickly and accurately identify the hiding in the car at the end of the contraband goods and illegal immigration, smuggling of people, faster and more accurate than the traditional vehicle inspection mirrors, greatly improving vehicle safety inspections speed and accuracy, reduce investment in human resources.

    Applications:

    1, airports, prisons, customs and other government agencies, and large public car park entrance used to check vehicles entering and leaving prohibited items.

    2, events, exhibition and out of the entrance to the vehicle safety checks.

    3, for the security check security, explosion, forces the bottom of the vehicle.

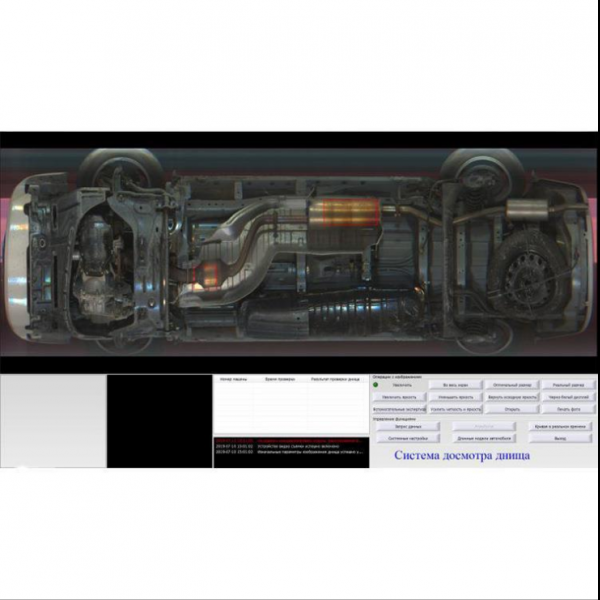

    First, the system software:

    1, using black and white linear CCD scanning technology dynamically imaging;

    2, scanning resolution: 2048 lines

    3, chassis store or load time:<1 second;

    4, vehicle image local Magnifying factor:> 2 times;

    5, vehicle image display mode: large format landscape;

    6, chassis image storage format: Standard image formats BMP or JPEG;

    7, system interface language: can be customized;

    8, display resolution: adapt the display resolution;

    9, vehicle image data transfer interface: Network RJ45;

    10, scene of the image display: ≥1 Road;

    11, a special vehicle image post-processing functions;

    II: vehicle image scanner, control equipment and environmental adaptability

    1, scanning mode: automatic, non-external triggers scanning;

    2, maximum scan rate: 18kHz;

    3, detection speed: It is recommended ≤30km / h;

    4, field of view angle: 180 degrees

    5, scanner data line: 10 m; (length can be customized)

    6, lighting components: two single sealing LED surface light source; life: 50000h

    7, vehicle image scanner: use only open wide-field image acquisition vehicle technical design;

    8, working voltage: DC24V;

    9, system power supply: AC220V / 50-60Hz.

    10, structural design: single seal design;

    11, ambient temperature: -20 degrees - +55 degrees

    Third, the system monitors the host server and:

    1 Display: 17-inch TFT LCD screen (replaceable large display)

    2, CPU: INTEL Core quad-core processor

    3. Motherboard: Motherboard special

    4, Memory: DDR3, greater than 2GB

    5, hard disk: 500G high-speed hard disk

    6. Graphics: DDR3,192BIT discrete graphics card

    7, Appearance: aluminum composite materials

    8, the working voltage: AC220V 50 / 60Hz

    9, the working current: 3A

    10, operating temperature: -20 ℃ ~ 55 ℃

    11, data transmission cable length: 10m

    Fourth, the license plate recognition system (domestic only)

    1, 1-way standard license plate recognition module can be optionally extended to two or more channels;

    2, a single character recognition accuracy rate: ≥99%;?

    3, the average recognition time:<20ms;

    4, the whole brand recognition accuracy rate: ≥95%

    5, plate image permissible level inclination angle: -10 to + 10 degrees;

    6 characters (except Chinese character) recognition accuracy rate: ≥93%

    7, the video signal to noise ratio> 48db

    Shenzhen ABNM Tech Co., Ltd is specialized in R&D, production and sales of doors & gates, EAS anti-shoplifting gates and accessories, handeheld metal detectors, walkthrough metal detectors, X ray baggage scanners, under vehilce insection system, safety and security inspection systems, etc.

    Our products sell well in China mainland, Southeast Asia, Europe, the Middle East, North America, Brazil, Russia, Nigeria, India, ect.

    Regarding "quality, service, brand and customer first" as our business principle, we will strive to do our best to meet customers‘ needs. We welcome you to cooperate with us.

    History

    R&D, production & sales of doors and gates (house & industrial uses) since 2006.

    R&D, production & sales of  EAS systtems (doors & tags) since 2008.

    R&D, production & sales of  metal detectors since 2010.

    R&D, production & sales of  baggage scanners since 2012.

    Service

    R&D, production, sales & installation of doors and gates, security and safety inspection systems.

    OEM & ODM are available.


    TAG:   UVSS-08 fixed water-proof under vehicle security inspection system UVSS08  under vehicle security inspection system UVSS08 fixed water-proof under vehicle security inspection system  water-proof under vehicle security inspection system uvss uvis under vehicle scanner
