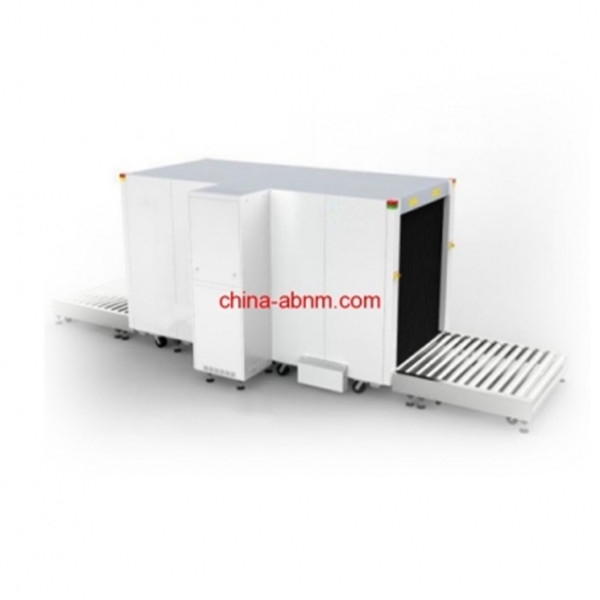

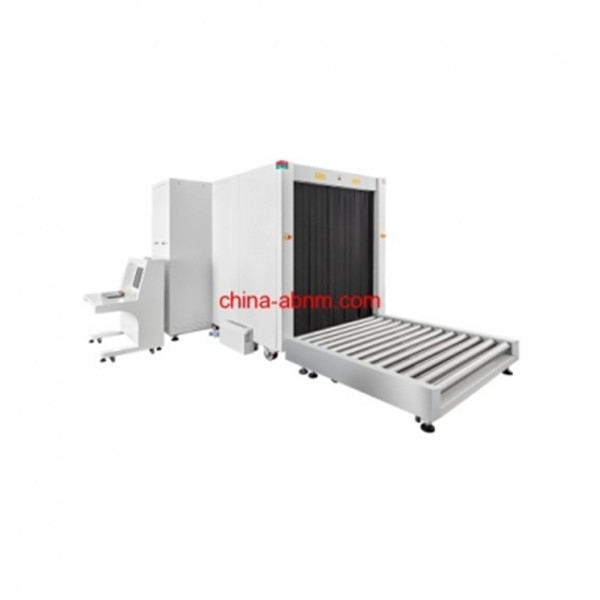

ABNM-150180 X-ray luggage scanner
General Specification
Tunnel Size: 1500(W)*1800(H)mm
Conveyor Speed: 0.22m/s
Conveyor Max Load: 2000kg
Dose per Inspection<1.7| Gy/h
Resolution< 0.101mm Copper Wire
Spatial resolution: Level: dia1.3mm, Vertical:dia1.0mm
Penetrate resolution: Dia 0.511mm
Penetration: 34mm Steel
Film Safety: Guarantee ISO1600 Film
X-ray Leakage<0.1 | Gy/h (at a distance of 5cm From external housing)
X-ray Generator
Generate direct: Downward
Generate anger: 80 degree
Anode Voltage: 140~160Kv
Anode power: 0.4 to 1.2mA
Cooling / Duty Cycle: Oil Cooling /100%
Image System
X-ray Sensor: L-Shaped Photodiode Array (multi-energetic) , 12bit Deep
Monitor: High Resolution Color, LCD Accord, 17 inch
Image Processing: Edge enhancement, image strengthening, image lightening,, reducing darkening, image returning, image retrieval.
Image Grey Level: 4096 Image Max Resolution: 1024 * 1280 pixel
Image Processing: 24bit for processing real time
Image storage: Storage 100000 pictures in real time
Zoom: 64 Times Enlarge, Whole screen continuous observation
Multi-energetic distinguish objects: organic objects in orange, inorganic objects in blue, mixture in green
High-energy/low energy: switch from high energy to low energy
Assist to detect drug and explosive powder
Installation Data
Operation temperature/Humidity: 0℃-45℃/20%-95%(non-condensing)
Storage Temperature/Humidity: -20℃-60℃/20%-95%(non-condensing)
Operation Power: 220VAC( 10%)50 3Hz
Power Consumption: 1.0 KW (max), 1.0KW(working)
Noise:<58db
Market Applications:
Defense Establishments
Border Patrol / Police and Paramilitary / Custom Sites
Cruise Screening
Airports
Bus Stations
Metro / Railway Stations
Prisons and Courthouses
Corporate Offices
Temples and Places of Worship
Supermarkets
Hotels and Corporate Offices
Entertainment
Sporting Events
Malls and Movie Theaters
Warehouses / Pallet Screening / Freight
Mail & Small Parcel X-ray Scanning
Small and lightweight X-ray systems are great for mailrooms and other applications with small contraband.
ABNM-5030A, ABNM-5030C, ABNM-5335, ABNM-5336, ABNM-6040, ABNM-6550A, ABNM-7555A, ABNM-6550C, ABNM-7555C, ABNM-6550D.
Checkpoint Inspection
Checkpoint X-ray scanners are great for courthouses, border patrol & more.
ABNM-6040, ABNM-6242, ABNM-6550, ABNM-7555A, ABNM-8065A, ABNM-6550C, ABNM-7555C, ABNM-8065C, ABNM-6550D, ABNM-8065D.
Large Baggage & Freight Screening
Large X-ray Scanners have increased tunnel sizes. great for cruise screening, airports, & more.
ABNM-7555A, ABNM-8065A, ABNM-10080A: ABNM-100100A, ABNM-7555C, ABNM-8065C, ABNM-10080C: ABNM-100100C, ABNM-8065D, ABNM-10080D, ABNM-100100D.
Cargo Screening
Cargo X-ray Scanners have the largest tunnel sizes., great for warehouses, pallet screening and freight.
ABNM-120120C, ABNM-140140C, ABNM-150150C, ABNM-150180C, ABNM-180180C, ABNM-200200C, ABNM-120120D, ABNM-140140D, ABNM-150150D, ABNM-150180D, ABNM-180180D, ABNM-200200D.
Mobile Screening
Mobile screening scanners are great for quick and efficient security at borders, custom sites, entertainment, and sporting events.
ABNM-6050M, ABNM-100100M.
Assembly Line Screening
ABNM-120120C, ABNM-140140C
Vehicle / Container Screening: Small vehicle scanner, truck scanner, container scanner.
ABNM-300300, ABNM-480280.
Package Solutions
(1)Walkthrough Metal Detectors / Doorframe Metal Detector Gates / Archway Metal Detector Doors: 1 / 2 /4 / 6 / 8 / 12 / 18 / 24 / 33 / 45 zones.
ABNM-100, ABNM-200, ABNM-400, ABNM-600, ABNM-800, ABNM-1200, ABNM-1600, ABNM-1600, ABNM-1800, ABNM-2400, ABNM-3300, ABNM-4500, PD6500I, 6S
(2)Handheld Metal Detectors: MD-3000, MD-3000II, MD-300, MD-3003B1, GC-1001, GC-1002, GP-3003B1, V-160, PD140, ESH-10, GARRETT SUPER SCANNER, PASSPORT.
(3)X-ray Personnel Screening: X-ray Body Scanners
(4)Dangerous Liquid Detectors: handheld detector, desktop detector.
(5)Explosive and Drugs Detectors.
(6)Explosion-Proof Blanket / Explosive Safety Tank / Explosion-Proof Ball.
(7)Under Vehicle Inspection Systems: Under Vehicle Search Mirror, Portable Scanner, Fixed Scanner.
(8)Anti-collision Products: Road Blockers, Tyre Killers.
(9)Frequency Jammers.
(10)Barrier gates / Turnstiles.
Shenzhen ABNM Tech Co., Ltd is specialized in R&D, production and sales of doors & gates, EAS anti-shoplifting gates and accessories, handeheld metal detectors, walkthrough metal detectors, X ray baggage scanners, under vehilce insection system, safety and security inspection systems, etc.
Our products sell well in China mainland, Southeast Asia, Europe, the Middle East, North America, Brazil, Russia, Nigeria, India, ect.
Regarding "quality, service, brand and customer first" as our business principle, we will strive to do our best to meet customers‘ needs. We welcome you to cooperate with us.
