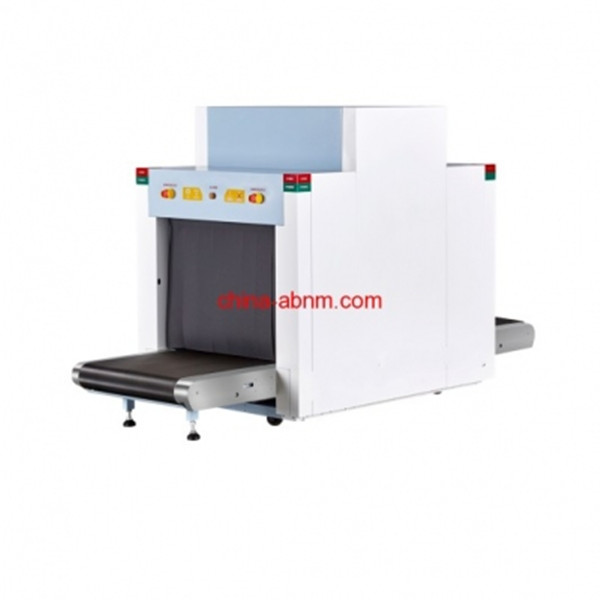

ABNM-8065C X-ray luggage scanner
General Specification
Tunnel Size: 800(W)*650(H)mm
Conveyor Speed: 0.22m/s
Conveyor Max Load: 200kg
Dose per Inspection<1.6μGy/h
Resolution< 0.0787mm Copper Wire
Spatial resolution: Level: dia1.3mm, Vertical: dia1.0mm
Penetrate resolution: Dia 0.511mm
Penetration: 34mm Steel
Film Safety: Guarantee ISO1600 Film
X-ray Leakage:<0.1μGy/h (at a distance of 5cm From external housing)
X-ray Generator
Generate direct: Downward
Generate anger: 80 degree
Anode Voltage: 100~160Kv
Anode power: 0.4 to 1.2mA
Cooling / Duty Cycle: Oil Cooling /100%
Image System
X-ray Sensor: L-Shaped Photodiode Array (multi-energetic) , 12bit Deep
Monitor: High Resolution Color, LCD Accord, 17 inch
Image Processing: Edge enhancement, image strengthening, image lightening, reducing darkening, image returning, image retrieval.
Image Grey Level: 4096
Image Max Resolution: 1024 * 1280 pixel
Image Processing: 24bit for processing real time
Image storage: Storage 60000 pictures in real time
Zoom: 2,4,8,16 Times Enlarge, Whole screen continuous observation
Multi-energetic distinguish objects: organic objects in orange, inorganic objects in blue, mixture in green
High-energy/low energy: switch from high energy to low energy
Assist to detect drug and explosive powder
Installation Data
Operation temperature/Humidity: 0°C-45°C/20%-95%(non-condensing)
Storage Temperature/Humidity: -20°C-60°C/20%-95%(non-condensing)
Operation Power: 220VAC(±10%)50±3Hz
Power Consumption: 1.0 KW (max), 0.9KW(working)
Image Processing System：
1, X-ray sensor: L-shaped photodiode array detector (multiple energy), 12bit depth
2, Display: 17 inches high-resolution LCD monitor
3, color image display: According to the material substance, 24-bit true color display
4, edge enhancement: the outline of objects more clear edge
5, Super image enhancement: clearer image details
6, high penetration display: improve the image contrast in bright areas, so as to penetrate the area more clearly
7, show low penetration: improve the image contrast in dark areas, so as to penetrate the area more clearly
8. Magnifier: local zoom function, real-time dynamic zoom
9, brightening / dimming: Increase brightness of the image / dimming of the image brightness.
10, image pull back / pull before: show 20 images, and the image can be any image processing
11, image restoration: an image display restored to its original state
12, Image Storage: real time save any images, and can be any image processing, continuous work to save.
13, multi-energy color: organics appear as orange, inorganic displayed in blue, and the mixture is shown in green
14, high energy / low energy: ENERGE
15, drug auxiliary explosives detection: the more typical drug assisted detection of explosives and other dangerous items
16, sound and light automatic alarm: When they find impenetrable object will be audible alarm signal and the object with a red box to box live, you can choose to enable or disable this feature.
17, dangerous goods insertion modes: automatic insertion perform dangerous.
18, TIP function: TIP very powerful, the current domestic first of its kind, the other manufacturers are not having supervision and evaluation, training, super power-saving features, the most important function is to oversee the evaluation function, so that the operator can not be lazy, to avoid operation members lazy and did not find work fatigue cause dangerous, life and property caused irreparable damage. (Unique features, Home and bottom detail over security shield machine TIP function)
Environment：
1, working temperature / humidity: 0 ℃ ~ 45 ℃ / 20% ~ 95% (non-condensing)
2. Storage temperature / humidity: -20 ℃ ~ 60 ℃ / 20% ~ 95% (non-condensing)
3, working voltage: 220VAC (± 10%) 50 ± 3HZ
4, power consumption: ≤1KW
5, noise level:<55dB
GW: 900KG
Product Advantages：
To make security more advanced technology, more powerful and more secure to ensure the security, company and university institutions to develop, invested heavily, after a year of scientific research, a new generation of security technology, has the following unique domestic product advantages :
1, face head real-time transfer function: using the most advanced security technology, can instantly security personnel face picture transmitted to a computer, phone, tablet, this function can immediately locked the suspect, solve the case quickly, face Avatar functionality allows real-time transmission security more secure. Our public security staff no longer have to sweat Dunshou, no longer disguised unannounced visits, and no longer have inspection teams, and currently belongs to the initiative, other manufacturers can not do anything, to fill the gaps, can be used to control when bidding standard parameters hundred percent successful (unique features)
2, TIP Function: TIP very powerful, the current domestic first of its kind, other manufac
