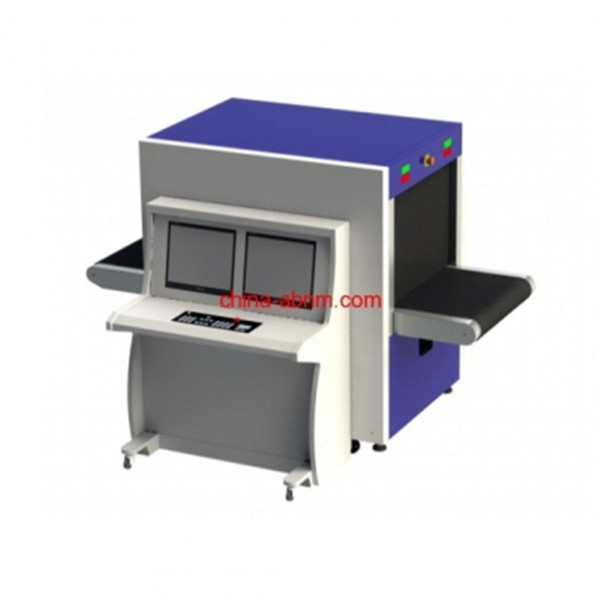

AABB-7555 X-ray baggage scanner
Technical Specifications
Tunnel Size:750(W)*550(H)mm
Power Requirement::220VAC(±10%)50±3Hz
Power Consumption:1.0 KW (max)
Noise:<55db
Conveyor Speed:0.22m/s
Conveyor Max Load:160kg
Sensitivity: 38WG Typical, 40WG Guaranteed
Spatial Resolution: 1.0mm Horizontal and Vertical
Penetration resolution: dia 0.254mm
Penetration: 38mm Steel Typical, 32mm Guaranteed
Dose per Inspection: < 1.4μGy/h
X-ray Leakage:0.1μGy/h (at a distance of 5cm From external housing)
Film Safety: Guarantee ISO1600 Film
X-ray Generator Specifications
Voltage: 100KV to 160KV
Tube Current: 0.4mA to 1.2mA
Cooling: Sealed Di-Electric Oil Bath with Forced Air.
Duty Cycle: Rated for 100% Duty Cycle
Beam Direction: Upward
Beam anger:80 degree
Detector: 1024 Channels in an L-Shaped Array
Image Display
Single 17’’ High Resolution, low Radiation, Ergonomic LCD Color Monitor
Display Resolution: 1280*1024; 24 bit/pixel Color
Contrast Sensitivity: 24 Visible Levels, 4096 Gray Level
Image storage:60000 pictures in real time
Zones & Zoom:1-9 Image regions, 2,4,8,16 Times Enlarge, Whole screen continuous observation
Processing: Edge enhancement, image strengthening, image lightening, reducing darkening,image returning, image retrieval.
Multi-Energy (M) color material identification: Organic objects in orange, inorganic objects in blue, mixture in green
Environmental Specifications
Operating Temperature: 0°C-45°C
Storage Temperature:-20°C-60°C
Humidity: Up to 95% Non-Condensing
Standard Features
Auto Image Archiving
Baggage Counter
Color and Black/ White Imaging
Density Alert
Edge-Enhancement Imaging
High Penetration
Image Annotation
Image review
Manual Archive (bitmap)
Suspect Image Archive
Operation Training Program
Picture Perfect
Print Image
Programmable Penetration
Programmable Contrast
Pseudo Color
Reverse Monochrome
Real-Time Image Manipulation
User Defined Access
Zoom 2X to 64X
High-energy/low energy: Switch from high energy to low energy
Assist to detect drug and explosive powder
Sound and light alarm;
l Protective cover on lead curtain to avoid lead pollution;
l Real time continuous self diagnostics
